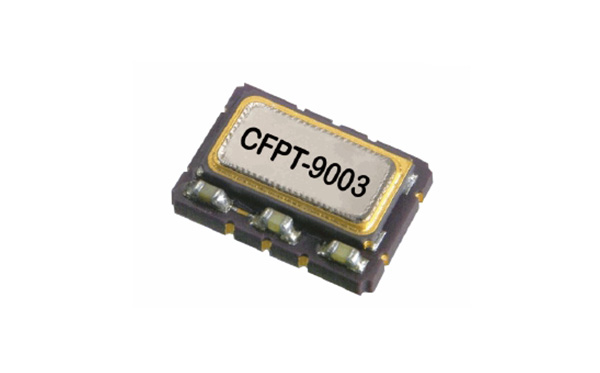

RAKON溫補型晶振CFPT-9003
產品優勢：
RAKON高精度溫補晶振，工作溫度-40to85°；專業高頻50MHZ,100MHZ,200MHZ,500MHZ
| Ultra Stable TCXO | |||||
|
APPLICATIONS: Precision Positioning, Test and Measurement, Telecommunications, High Reliability Defense, Stratum 3, IEEE 1588, SyncE, SONET, SDH, WDM, OTN, Carrier Networking, Carrier Ethernet, Microwave, Backhaul, Transport Equipment, Small Cells (WCDMA, LTE, LTE-A), Enterprise Networking. |
|||||
| Model | Frequency Range | Stability | Output | Features | |
| (FvsT) | |||||
| RPT7050A | 1.25 – 52 MHz | ±0.05 – 2.5 ppm | Clipped sinewave | 6 pin, 2.5 – 5.7 V | |
| New | (-55°C to 105°C) | Sinewave | Positioning | ||
| HCMOS | Test and Measurement | ||||
| ACMOS | Hi-rel / Defense | ||||
| RPT5032A | 1.25 – 52 MHz | ±0.05 – 2.5 ppm | Clipped sinewave | 6 or 10 pin, 2.5 – 5.7 V | |
| New | (-55°C to 105°C) | Sinewave | Positioning | ||
| HCMOS | Test and Measurement | ||||
| ACMOS | Hi-rel / Defense | ||||
| RPT7050J | 10 – 40 MHz | ±0.1 – 0.28 ppm | HCMOS | 6 pin, 3.3 V | |
| New | (Holdover stability, | Networking | |||
| -40°C to 85°C) | |||||
| RPT5032J | 10 – 40 MHz | ±0.1 – 0.28 ppm | HCMOS | 6 pin, 3.3 V | |
| New | (Holdover stability, | Networking | |||
| -40°C to 85°C) | |||||
| RPT7050P | 19.2 – 40 MHz | ±0.05 – 0.25 ppm | Clipped sinewave | 6 pin, 2.5 – 5.7 V | |
| New | (-40°C to 85°C) | HCMOS | Small Cells | ||
| RPT5032P | 19.2 – 40 MHz | ±0.05 – 0.25 ppm | Clipped sinewave | 6 pin, 2.5 – 5.7 V | |
| New | (-40°C to 85°C) | HCMOS | Small Cells | ||
| RPT7050N | 12.8 – 26 MHz | ±0.05 – 0.1 ppm | Clipped sinewave | 6 pin, 2.5 – 5.7 V | |
| New | (-40°C to 85°C) | HCMOS | Small Cells | ||
| RPT5032N | 12.8 – 26 MHz | ±0.05 – 0.1 ppm | Clipped sinewave | 4 or 6 pin, 2.5 – 5.7 V | |
| New | (-40°C to 85°C) | HCMOS | Small Cells | ||
| RFPT400 | 10 - 30 MHz | ±0.08 - 0.25 ppm | Clipped sinewave | Femtocell | |
| . | (0 to 70°C) | ||||
| RFPT500 | 10 - 30 MHz | ±0.14 - 0.28 ppm | HCMOS | Stratum 3 | |
| . | (-40 to 85°C) | ||||
| CFPT9300 | 1.25 - 52 MHz | ±0.2 - 2.0 ppm | HCMOS | Communications | |
| . | (-40 to 85 °C) | Clipped sinewave | |||
| CFPT9000 | 10 - 40 MHz | ±0.2 - 2.5 ppm | Sinewave | Communications | |
| . | (-40 to 85°C) | Clipped sinewave | Acceleration sensitivity | ||
| HCMOS | |||||
| CFPT9050 | 1 - 80 MHz | ±0.3 - 2.5 ppm | Sinewave | High frequency TCXO | |
| . | (-55 to 105°C) | Clipped sinewave | Communications | ||
| HCMOS | |||||
| Application Note | |||||
| . | |||||
Rakon溫補晶振超穩定的TCXO產品提供了最高的頻率穩定度的TCXO的表現，但沒有成本高，功耗。
超穩定的Rakon溫補晶振解決大批量應用在很高的穩定性是必需的，以消除調整TCXO的控制電壓的不利影響，以便長期漂移。緊隨著的穩定性為100ppb（1 × 10-7）溫度和輸出多種選擇，這些產品非常適合家庭無線基站，求救信標和其它高容量，穩定性要求苛刻的應用。
產品特征：
產品各項指標支持定制，精度/相噪/電壓/封裝均可按客戶要求定制！
主要賣點：
符合國軍標各項標準， 產品性能穩定；
封裝小，功率小，精度高，頻率高；
低相噪-155 dBc/Hz
規格參數：
頻率：10.000000MHz(10MHZ,12.8MHZ,19.2MHZ,20MHZ,40MHZ,100MHZ)
電壓：3.3V
精度：0.1PPm
波形：正弦波,方波
相噪：-145bBc/-1KHz
溫度：-40to85°
尺寸：7.5x5.0mm
CFPT9006FX1A-10.00MHZ
CFPT9007EX1A-10.00MHZ
CFPT9008AX1A-10.00MHZ
應用范圍：
軍工，航天，航空，國防，通信雷達，基站
